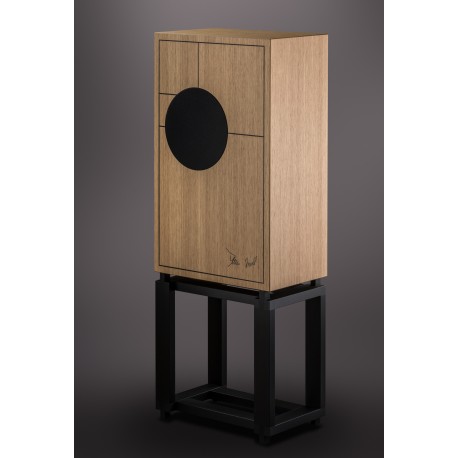

TRENNER FRIEDL - PHI Loudspeakers
HITRE002
Passive speakers. The PHI model has an exceptional sound rendering and its co,nsecption is based on Gold Number.
Several finishes are available (see image), contact us for more information.
Beauty in the world follows in it's proportions the golden section!
We at Trenner & Friedl deal with these natural phenomena for more than 25 years.
Not only to create beautiful speakers, but above all to achieve a harmonious and natural sound.
But no speaker was as close to this goal as PHI:
The inner division, the special bracing, the milled segments of the front to prevent bending waves, the driver unit, the cables, the derivative of the Structure-borne noise with different speeds of sound:
All this submits to the golden ratio.
Phi is a point source that is clearly designed to work in harmony with high-end amplifiers. With the special eye and attention to fine tube amplifier.
PHI : The poetry of the golden section, the sound of nature.
| Features | Large stand mounted speaker |
| Golden ratio proportions | |
| Multiplex birch wood of different densities | |
| Milled segments on the baffle to prevent bending waves | |
| Multi layered lacquer finish | |
| Fullrange loudspeaker for ideal impulse and phase response | |
| Paper cone impregnated with Italian oil varnish | |
| Cardas internal wire, also constructed in golden ratio proportions | |
| Cardas terminals | |
| Finest crossover components by Mundorf | |
| Designed for tube amplifires | |
| Drive Units | 1 x 8" paper cone with papyrus fiber coated with violin varnish |
| Frequency response | 46 Hz (f-3 DB) to 20 kHz (f-3 DB) |
| Sensitivity | 92 dB (2.83V/1m) |
| Impedance | 8 Ohms (minimum 7.3 Ohm at 230 Hz) |
| Dimensions | Height (without stands): 650mm |
| Width: 400mm | |
| Depth: 250mm | |
| Weight | 21 kg |
| Finishes Body | Iced Oak |
| Others on request |
